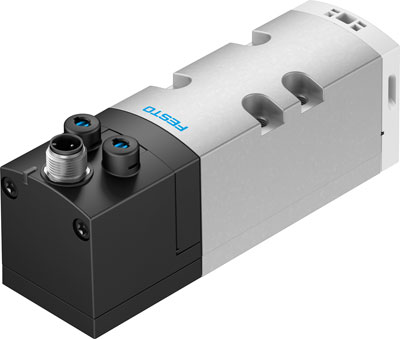

Feature |
Value |
| Valve function |
2x3/2 closed, monostable |
| Type of actuation |
electrical |
| Width |
42 mm |
| Standard nominal flow rate |
1,100 l/min |
| Operating pressure |
3 ... 10 bar |
| Design structure |
Piston slide |
| Type of reset |
Air spring |
| Authorisation |
c CSA us (OL)
c UL us - Recognized (OL) |
| Protection class |
IP65
NEMA 4 |
| Nominal size |
11 mm |
| Grid dimension |
43 mm |
| Exhaust-air function |
throttleable
Via throttle plate
Via individual sub-base |
| Sealing principle |
soft |
| Assembly position |
Any |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
detenting
Pushing |
| Type of piloting |
Piloted |
| Pilot air supply |
external |
| Flow direction |
non reversible |
| Overlap |
Positive overlap |
| Signal status display |
LED |
| Pilot pressure |
3 ... 10 bar |
| Flow rate of valve |
1,600 l/min |
| Flow rate of valve on individual sub-base |
1,200 l/min |
| Flow rate of pneumatically linked valve |
1,100 l/min |
| Switching time off |
38 ms |
| Switching time on |
20 ms |
| Duty cycle |
100 % |
| Max. positive test pulse with logic 0 |
1,600 µs |
| Max. negative test pulse with logic 1 |
1,100 µs |
| Characteristic coil data |
24 V DC: 1.3 W |
| Permissible voltage fluctuation |
+/- 10 % |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (subsequently required for further operation) |
| Vibration resistance |
Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance classification CRC |
0 - No corrosion stress |
| Medium temperature |
-5 ... 50 °C |
| Relative air humidity |
0 - 90 % |
| Pilot medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Ambient temperature |
-5 ... 50 °C |
| Product weight |
442 g |
| Electrical connection |
3-pin
M12x1
Central plug
Round design |
| Mounting type |
On sub-base |
| Auxiliary pilot air port 12/14 |
Connection plate size 1 as per ISO 5599-1 |
| Pilot exhaust port 82/84 |
Optional
Not ducted as per standard
Ducted |
| Pneumatic connection, port 1 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 2 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 3 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 4 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 5 |
Connection plate size 1 as per ISO 5599-1 |
| Materials note |
Conforms to RoHS |
| Material seals |
FPM
HNBR
NBR |
| Material housing |
Aluminium die cast
PA |
| Material screws |
Steel
Galvanised |
