Data sheet:

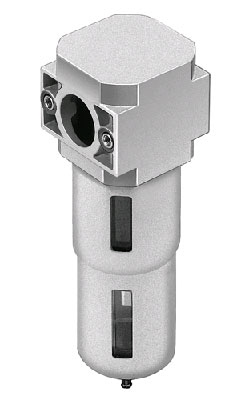

Name: LFX-D-MINI FESTO
Rating: 5 (8 reviews)

Feature	Value
Size	Mini
Series	D
Assembly position	Vertical +/- 5°
Design structure	Active carbon filter Fibre filter
Bowl guard	Metal bowl guard
Operating pressure	0 ... 16 bar
Recommended maximum standard flow rate	360 l/min
Max. standard flow rate for air quality class	360 l/min
Operating medium	Compressed air in accordance with ISO8573-1:2010 [1:4:2] Inert gases
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Storage temperature	-10 ... 60 °C
Air purity class at output	Compressed air to ISO 8573-1:2010 [1:4:1] Inert gases
Medium temperature	5 ... 30 °C
Residual oil content	<= 0.003 mg/m3
Ambient temperature	-10 ... 60 °C
Product weight	283 g
Mounting type	Line installation With mounting bracket Optional
Pneumatic connection	Without sub-base
Pneumatic connection, port 1	Manifold module
Pneumatic connection, port 2	Manifold module
Materials note	Free of copper and PTFE Conforms to RoHS
Material filter	Active carbon Mesh
Material housing	Zinc die-casting
Material bowl	PC

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.327 kg
working pressure [bar]	0÷16
type	air filter
country of origin
max. standard flow rate [l/min]	360
working medium	Gazy obojętne, sprężone powietrze wg ISO8573-1:2010 [1:4:2]
pneumatic connector	Without sub-base
