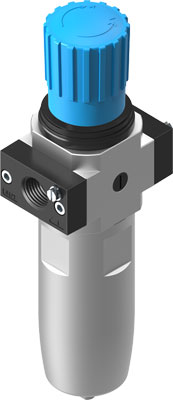

LFR-1/2-D-O-MIDI-T18-EX4 FESTO

4772769 FESTO 4772769 FESTO

Weight

1.577 kg

ATEX Dust

II 2D

ATEX Gas

II 2G

condensate drain

manually rotating

country of origin

filtrowanie [μm]

type

filter regulator

working medium

Gazy obojętne, sprężone powietrze wg ISO 8573-1:2010 [-:9:-]

working pressure [bar]

1÷20

zakres regulacji ciśnienia [bar]

0,5÷12

Details Attributes

LFR-1/2-D-O-MIDI-T18-EX4 FESTO

Filter regulator

Data sheet:

Name: LFR-1/2-D-O-MIDI-T18-EX4 FESTO
Rating: 4.8 (9 reviews)

Feature	Value
Size	Midi
Series	D
Actuator lock	Rotary knob with lock
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	manual rotary
Design structure	Filter regulator without pressure gauge
Max. condensate volume	42 cm3
Bowl guard	integrated as metal shell
Pressure gauge	Prepared for G1/4
Operating pressure MPa	0.1 ... 2 MPa
Operating pressure	1 ... 20 bar
Pressure regulation range	0.5 ... 12 bar
Max. pressure hysteresis	0.2 bar
Standard nominal flow rate	3,400 l/min
CE mark (see declaration of conformity)	to EU directive explosion protection (ATEX)
ATEX category Gas	II 2G
ATEX category Dust	II 2D
Explosion ignition protection type Gas	Ex h IIC T6 Gb X
Explosion ignition protection type Dust	Ex h IIIC T85°C Db X
Explosion-proof ambient temperature	-20°C <= Ta <= +80°C
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	3 - High corrosion stress
Storage temperature	-20 ... 80 °C
Air purity class at output	Compressed air in accordance with ISO8573-1:2010 [7:8:4] Inert gases
Medium temperature	-20 ... 80 °C
Ambient temperature	-20 ... 80 °C
Product weight	1,400 g
Mounting type	Line installation with accessories Optional
Pneumatic connection, port 1	G1/2
Pneumatic connection, port 2	G1/2
Materials note	Conforms to RoHS
Material housing	Zinc die-casting
Material bowl	Wrought Aluminium alloy

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	1.577 kg
working pressure [bar]	1÷20
type	filter regulator
ATEX Gas	II 2G
ATEX Dust	II 2D
country of origin
filtrowanie [μm]	40
zakres regulacji ciśnienia [bar]	0,5÷12
working medium	Gazy obojętne, sprężone powietrze wg ISO 8573-1:2010 [-:9:-]
condensate drain	manually rotating
