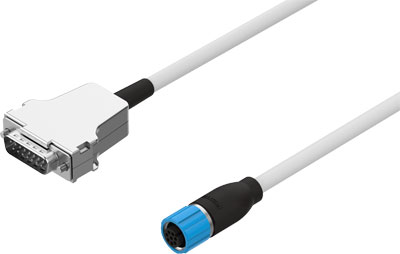

Feature |
Value |
| Cable identification |
Without inscription label holder |
| Electrical connection 1, function |
Field device side |
| Electrical connection 1, design |
Round |
| Electrical connection 1, connection type |
Plug socket |
| Electrical connection 1, cable outlet |
Straight |
| Electrical connection 1, connection technology |
M12x1, A-coded in accordance with EN 61076-2-101 |
| Electrical connection 1, number of pins/wires |
8 |
| Electrical connection 1, occupied pins/wires |
8 |
| Electrical connection 2, function |
Controller side |
| Electrical connection 2, design |
Angular |
| Electrical connection 2, connection type |
Plug |
| Electrical connection 2, cable outlet |
Straight |
| Electrical connection 2, connection technology |
Sub-D |
| Electrical connection 2, number of pins/wires |
15 |
| Electrical connection 2, occupied pins/wires |
8 |
| Operating voltage range DC |
0 ... 30 V |
| Nominal operating voltage DC |
24 V |
| Operating voltage range AC |
0 ... 30 V |
| Nominal operating voltage, AC |
24 V |
| Cable length |
15 m |
| Cable attribute |
Suitable for chain link trunking |
| Bending radius, flexible cable installation |
>= 68 mm |
| Cable diameter |
6.8 mm |
| Cable structure |
4x2x0,14
Shielded |
| Nominal conductor cross-section |
0.14 mm2 |
| Protection class |
IP65 |
| Note on degree of protection |
IP30 for plug connector Sub-D
in assembled condition |
| Ambient temperature |
-40 ... 80 °C |
| Ambient temperature with flexible cable installation |
-5 ... 80 °C |
| CE mark (see declaration of conformity) |
in accordance with EU RoHS directive |
| Materials note |
Conforms to RoHS |
| Corrosion resistance classification CRC |
0 - No corrosion stress |
| Material cable sheath |
TPE-U(PUR) |
| Cable sheath colour |
Grey |
