You are here: Linear motion Actuators ELGA-TB-KF-80-1200-0H FESTO

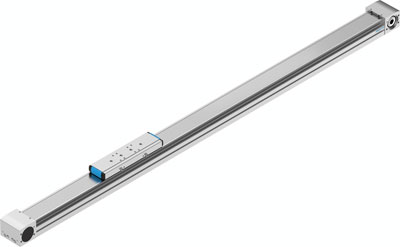

ELGA-TB-KF-80-1200-0H

Driven linear unit

ELGA-TB-KF-80-1200-0H FESTO

8041863 FESTO
dimensions 80 x 0 x 1200
Weight 11.7 kg
acceleration [m/s2] 50
country of origin
drive pasowy
duty cycle 100 %
frictional torque independent of load [Nm] 1
max. velocity [m/s] 5
piston diameter 80 mm
stała posuwu [mm/U] 125
stroke [mm] 1200
t -pitch [mm] 5
type driven linear unit
Log in to ask for price and availability
Details Attributes

ELGA-TB-KF-80-1200-0H FESTO

Driven linear unit

Data sheet:




Feature Value
Effective diameter of drive pinion 39.79 mm
Working stroke 1,200 mm
Size 80
Stroke reserve 0 mm
Toothed-belt stretch 0.168 %
Toothed-belt pitch 5 mm
Assembly position Any
Guide Recirculating ball bearing guide
Design structure Electromechanical linear axis
With toothed belt
Motor type Stepper motor
Servomotor
Measuring method: displacement encoder Incremental
Max. acceleration 50 m/s2
Max. speed 5 m/s
Repetition accuracy ±0,08 mm
Duty cycle 100 %
Protection class IP40
Ambient temperature -10 ... 60 °C
Area moment of inertia 2nd degree Iy 257.18 * 1003 mm4
Area moment of inertia 2nd degree Iz 913.66 * 1003 mm4
Max. drive torque 15.92 Nm
Max. force Fy 2,500 N
Max. force Fz 3,050 N
Max. idling displacement resistance 50.3 N
Max. torque Mx 36 Nm
Max. torque My 228 Nm
Max. torque Mz 228 Nm
Max. feed force Fx 800 N
No-load driving torque 1 Nm
Torsional mass moment of inertia It 159.25 * 1003 mm4
Mass moment of inertia JH per metre of stroke 0.93 kgcm2
Mass moment of inertia JL per kg of working load 3.96 kgcm2
Mass moment of inertia, JO 9.82 kgcm2
Mass moment of inertia JW for additional slide 7.61 kgcm2
Feed constant 125 mm/U
Lubrication interval, distance dependent 1,000 km
Slide weight 1.9 kg
Additional slide weight 1.53 kg
Additional weight per 10 mm stroke 0.051 kg
Basic weight for 0 mm stroke 4.7 kg
Material of profile Wrought Aluminium alloy
Anodised
Materials note Contains PWIS substances
Conforms to RoHS
Material cover tape Stainless steel strip
Material drive cover Wrought Aluminium alloy
Anodised
Material guide slide Stainless steel
Material guide rail Stainless steel
Material pulleys High alloy steel, non-corrosive
Material slide Wrought Aluminium alloy
Anodised
Material toothed belt clamping piece Stainless steel casting
Material toothed belt polychloroprene with glass cord and nylon coating
manufacturer FESTO
dimensions 80 x 0 x 1200
Weight 11.7 kg
stroke [mm] 1200
piston diameter 80 mm
t -pitch [mm] 5
type driven linear unit
max. velocity [m/s] 5
acceleration [m/s2] 50
country of origin
drive pasowy
frictional torque independent of load [Nm] 1
stała posuwu [mm/U] 125
duty cycle 100 %

Technical materials

Bearing diagnosis Bearing diagnosis
Express deliveries Express deliveries
Contact 24/7 Contact 24/7
5% discount 5% discount
