DSBC-100-250-PPSA-N3 FESTO

1384898 FESTO 1384898 FESTO 1384898 FESTO

dimensions

100 x 0 x 250

Weight

6.16 kg

country of origin

Hungary

material

galvanized steel

materiał łożyskowania

POM

norm

ISO 15552

piston diameter

100 mm

stroke [mm]

250

thread

M20x1,5

thread

G 1/2

type

pneumatic cylinder

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:4:4]

working pressure [bar]

0,4÷12

Details Attributes Substitutes (1)

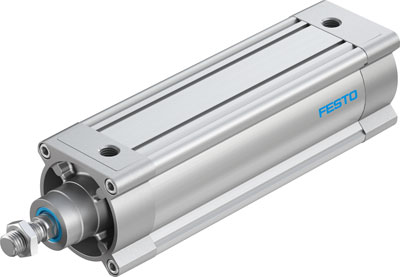

DSBC-100-250-PPSA-N3 FESTO

Pneumatic cylinder (norm: ISO 15552)

Data sheet:

Name: DSBC-100-250-PPSA-N3 FESTO
Rating: 4.7 (9 reviews)

Feature	Value
Stroke	250 mm
Piston diameter	100 mm
Piston rod thread	M20x1,5
Cushioning	PPS: Self-adjusting pneumatic end-position cushioning
Assembly position	Any
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design structure	Piston Piston rod Profile barrel
Position detection	For proximity sensor
Variants	Single-ended piston rod
Operating pressure MPa	0.04 ... 1.2 MPa
Operating pressure	0.4 ... 12 bar
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Ambient temperature	-20 ... 80 °C
Impact energy in end positions	2.5 J
Cushioning length	31 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting	4,418 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance	4,712 N
Moving mass with 0 mm stroke	1,000 g
Additional weight per 10 mm stroke	101 g
Basic weight for 0 mm stroke	3,665 g
Additional mass factor per 10 mm of stroke	39 g
Mounting type	with internal (female) thread with accessories Optional
Pneumatic connection	G1/2
Materials note	Conforms to RoHS
Material cover	Die-cast aluminium, coated
Material piston seal	TPE-U(PU)
Material piston	Wrought Aluminium alloy
Material piston rod	High alloy steel
Material piston rod wiper seal	TPE-U(PU)
Buffer seal material	TPE-U(PU)
Cushion piston material	POM
Material cylinder barrel	Smooth-anodised wrought aluminium alloy
Material nut	steel, galvanized
Material bearing	POM
Material of flange screw	steel, galvanized

Attributes

manufacturer	FESTO
dimensions	100 x 0 x 250
Weight	6.16 kg
working pressure [bar]	0,4÷12
thread	M20x1,5
thread	G 1/2
material	galvanized steel
norm	ISO 15552
stroke [mm]	250
piston diameter	100 mm
type	pneumatic cylinder
country of origin	Hungary
materiał łożyskowania	POM
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
