VZBD-21/2-S1-16-T-2-F0710-V14V14 FESTO

4795671 FESTO

Weight

6.118 kg

country of origin

direction of flow

reversible

DN średnica nominalna

material

stainless steel

medium

Sprężone powietrze wg ISO8573-1:2010 [-:-:-], ciecze obojętne, Woda, Para, Gazy obojętne

nominal pressure [bar]

product feature

stainless steel

thread

DN65

type

ball valve

valve function

2/2

Details Attributes

VZBD-21/2-S1-16-T-2-F0710-V14V14 FESTO

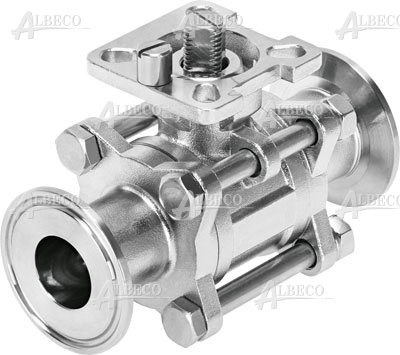

Ball valve, stainless steel

Data sheet:

Name: VZBD-21/2-S1-16-T-2-F0710-V14V14 FESTO
Rating: 4.5 (12 reviews)

Feature	Value
Design structure	2-way ball valve
Type of actuation	mechanical
Sealing principle	soft
Assembly position	Any
Mounting type	Line installation
Process valve connection	Clamp in accordance with ASME-BPE
Switching position indicator	Slot direction = flow direction
Flange hole pattern	F0710
Inside diameter	60.3 mm
Nominal diameter DN	65
Valve function	2/2
Flow direction	reversible
Nominal pressure of process valve	16
Breakaway torque at differential pressure, nominal pressure, process valve PN	79 Nm
Based on the standard	ASME BPE ISO 5211
Medium	Vapour Compressed air in accordance with ISO8573-1:2010 [-:-:-] Inert gases Water Neutral fluids
Medium temperature	-20 ... 200 °C
Flow rate Kv	161.7 m3/h
Materials note	Contains PWIS substances Conforms to RoHS
Food-safe	See Supplementary material information
Material housing	Stainless steel casting
Material number for housing	1.4409
Material seat seal	PTFE, modified
Material seals	FPM PTFE
Material ball	Stainless steel casting
Material number for ball	1.4409
Material shaft	High alloy steel, non-corrosive
Material number for shaft	1.4401
Product weight	6,180 g
Authorisation	3-A Sanitary CRN
CE mark (see declaration of conformity)	to EU directive pressure devices
Corrosion resistance classification CRC	4 - Very high corrosion stress

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	6.118 kg
thread	DN65
material	stainless steel
type	ball valve
product feature	stainless steel
country of origin
DN średnica nominalna	65
valve function	2/2
direction of flow	reversible
nominal pressure [bar]	16
medium	Sprężone powietrze wg ISO8573-1:2010 [-:-:-], ciecze obojętne, Woda, Para, Gazy obojętne
