You are here: Power transmission Chains and sprockets Sprockets PHS 10B-1A112 SKF

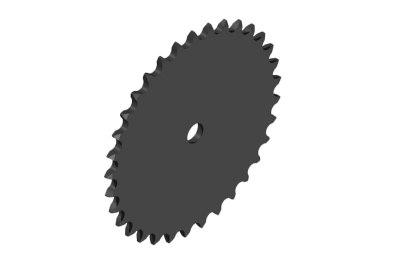

Single row sprocket

PHS 10B-1A112 SKF

Name: PHS 10B-1A112 SKF
Rating: 4.5 (11 reviews)

dimensions	30 x 0 x 0
Weight	16.55 kg
country of origin
Dp - pitch diameter [mm]	566.03
D [mm]	575.31
d [mm]	30
execution	A
material	carbon steel C45 / 1.0503 / AISI1045
number of teeth	112
p [mm]	15.88
tooth hardness [HRC]	soft
type	single row sprocket

Details Attributes

PHS 10B-1A112 SKF

Single row sprocket

Simplex sprocket plate with pilot bore, European standards (EN)
Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a pilot bore. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

Manufactured according to international global standards
Made from high-grade steel and carbon steel

manufacturer	SKF
dimensions	30 x 0 x 0
Weight	16.55 kg
d [mm]	30
D [mm]	575.31
Dp - pitch diameter [mm]	566.03
number of teeth	112
material	carbon steel C45 / 1.0503 / AISI1045
p [mm]	15.88
tooth hardness [HRC]	soft
type	single row sprocket
execution	A
country of origin
