You are here: Bearings Spherical plain bearings and rod ends Rod ends DSIL 16 T/K DURBAL

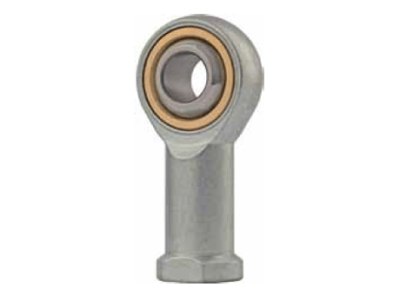

Rod end

DSIL 16 T/K DURBAL

dimensions	16 x 0 x 0
Weight	0.216 kg
A - rod end outer diameter [mm]	42
C - outer ring width [mm]	15
clearence	0÷40 µm
country of origin	China
Dynamic load rating [N]	18700
d [mm]	16
F - height to the axis [mm]	64
friction pair	steel/PTFE on brass
GL - thread length [mm]	28
inner ring width [mm]	21
L - rod head height [mm]	85

Plewiska (1)

on stock

Log in to see the price

DURBAL

Attributes Substitutes (7)

DSIL 16 T/K DURBAL

Rod end

Log in to see the price

Attributes

manufacturer	DURBAL
dimensions	16 x 0 x 0
Weight	0.216 kg
A - rod end outer diameter [mm]	42
inner ring width [mm]	21
C - outer ring width [mm]	15
d [mm]	16
F - height to the axis [mm]	64
GL - thread length [mm]	28
thread	M16
L - rod head height [mm]	85
clearence	0÷40 µm
norm	DIN ISO 12240-4 & DIN ISO 8139 serie K
friction pair	steel/PTFE on brass
type	rod end
sealing	none
Dynamic load rating [N]	18700
static load rating [N]	31200
product line	Basic line
max. tilt angle [°]	15
country of origin	China
thread 2	internal thread, left

Technical materials

catalog

Product's substitutes

BEF 16-20-502 DURBAL

BEF 16-20-502 DURBAL

Rod end

16 x 0 x 0

Log in to ask for price and availability

GIKL16-PW INA

GIKL16-PW INA

Rod end

16 x 0 x 0

in stock

Plewiska: 16 pcs

Log in to see prices

GILSW 16 FLURO

GILSW 16 FLURO

Rod end

16 x 0 x 0

in stock

Plewiska: 23 pcs

Katowice: 3 pcs

Olsztyn: 1 pcs

2 weeks: 100 pcs

Log in to see prices

GILSW 16 ICR FLURO

GILSW 16 ICR FLURO

Rod end, chrome plated

16 x 0 x 0

Log in to ask for price and availability

GILXSW 16 FLURO

GILXSW 16 FLURO

Rod end

16 x 0 x 0

in stock

Plewiska: 14 pcs

2 weeks: 92 pcs

Log in to see prices

KIL 16.D ASKUBAL

KIL 16.D ASKUBAL

Rod end

16 x 0 x 0

in stock

Plewiska: 52 pcs

Log in to see prices

SILKB 16 F SKF

SILKB 16 F SKF

Rod end

16 x 0 x 0

in stock

Plewiska: 2 pcs

Log in to see prices
