dimensions | 30 x 62 x 38.1 |
Weight | 0.35 kg |

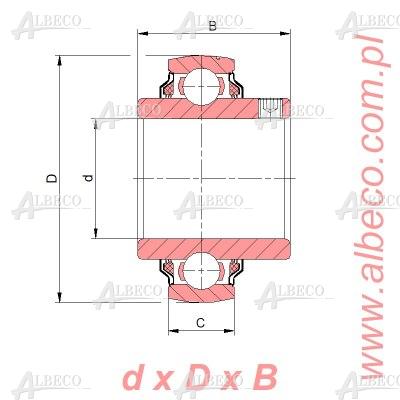

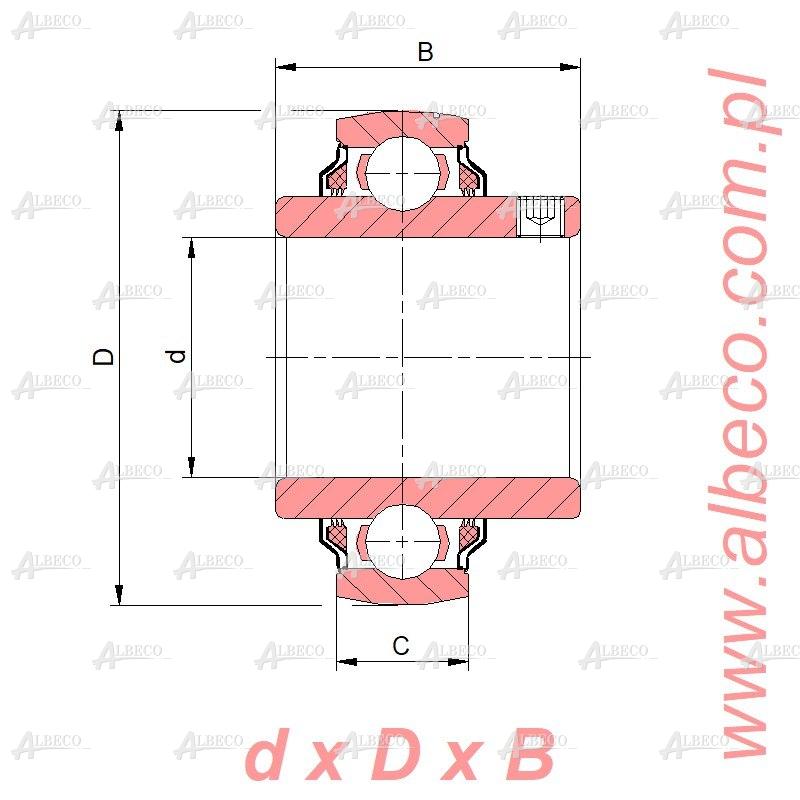

C - outer ring width (insert bearing) [mm] | 19 |
cage | steel |
clearence | C3 - greater than normal |
country of origin | |
Dynamic load rating [N] | 19500 |
d [mm] | 30 |
D [mm] | 62 |
inner ring width [mm] | 38.1 |
rounded outer ring | yes |
sealing | dedicated to agriculture, for heavily polluted applications. Low rotation speeds |
static load rating [N] | 11200 |
UC206AGR SNR
Insert ball bearing
manufacturer | SNR |
dimensions | 30 x 62 x 38.1 |
Weight | 0.35 kg |
inner ring width [mm] | 38.1 |
C - outer ring width (insert bearing) [mm] | 19 |
d [mm] | 30 |
D [mm] | 62 |
clearence | C3 - greater than normal |
type | insert ball bearing |
sealing | dedicated to agriculture, for heavily polluted applications. Low rotation speeds |
rounded outer ring | yes |
Dynamic load rating [N] | 19500 |
static load rating [N] | 11200 |
cage | steel |
country of origin |
