dimensions | 30 x 62 x 38.1 |
Weight | 0.309 kg |
C - outer ring width (insert bearing) [mm] | 18 |
cage | polyamide |
clearence | C3 - greater than normal |
country of origin | Vietnam |
Dynamic load rating [N] | 19500 |
d [mm] | 30 |
D [mm] | 62 |
inner ring width [mm] | 38.1 |
rounded outer ring | yes |
sealing | double-sided lip seal covered with a plate |
static load rating [N] | 11300 |

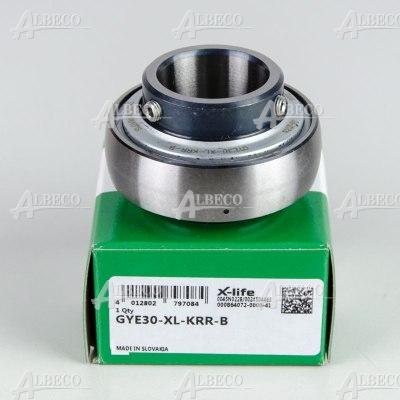

GYE30-XL-KRR-B INA
Insert ball bearing
manufacturer | INA |
dimensions | 30 x 62 x 38.1 |
Weight | 0.309 kg |
inner ring width [mm] | 38.1 |
C - outer ring width (insert bearing) [mm] | 18 |
d [mm] | 30 |
D [mm] | 62 |
clearence | C3 - greater than normal |
type | insert ball bearing |
sealing | double-sided lip seal covered with a plate |
rounded outer ring | yes |
Dynamic load rating [N] | 19500 |
static load rating [N] | 11300 |
cage | polyamide |
country of origin | Vietnam |
Technical materials
Plewiska: 45 pcs
1030-30GHLT RHP-NSK
Insert ball bearing (operating temp.: max. 180°C)C - outer ring width (insert bearing) [mm]: 16
Plewiska: 12 pcs
Plewiska: 206 pcs
Olsztyn: 12 pcs
1 week: 232 pcs
Plewiska: 54 pcs
Olsztyn: 8 pcs
Plewiska: 712 pcs
Katowice: 6 pcs
Olsztyn: 9 pcs
Plewiska: 245 pcs
Katowice: 7 pcs
Olsztyn: 8 pcs
1 day: 2166 pcs
2 weeks: 73 pcs
UC206 ENC 270°C BRL
Insert ball bearing (operating temp.: +270°C)C - outer ring width (insert bearing) [mm]: 19
Plewiska: 79 pcs
Plewiska: 1559 pcs
Katowice: 23 pcs
Olsztyn: 17 pcs
1 day: 5059 pcs
2 weeks: 94 pcs
Plewiska: 284 pcs
Olsztyn: 20 pcs
2 weeks: 83 pcs
1 day: 18 pcs
UC206G2T20 SNR
Insert ball bearing (operating temp.: -20÷200°C)C - outer ring width (insert bearing) [mm]: 19
Plewiska: 426 pcs
1 day: 109 pcs
2 weeks: 95 pcs
UC206HT2D1 NTN
Insert ball bearing (operating temp.: max. 180°C)C - outer ring width (insert bearing) [mm]: 19
Plewiska: 26 pcs
2 weeks: 63 pcs
Plewiska: 42 pcs
FE 8049 Z19 GMN
F20T501D ERREDI
Loctite 243 (10ml) LOCTITE
43-1 KUKKO
