You are here: Linear motion Racks and gears Helical racks and gears 1HR26R015100H/1 GAMBINI

Precision helical rack (quality class: 6, modul: 1,5)

1HR26R015100H/1 GAMBINI

Name: 1HR26R015100H/1 GAMBINI
Rating: 4.9 (12 reviews)

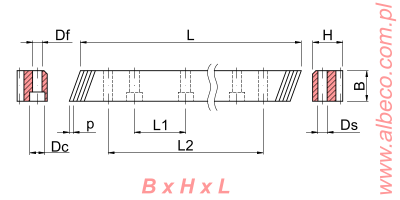

dimensions	19 x 19 x 1000
Weight	2.499 kg
B [mm]	19
country of origin	Italy
Dc [mm]	11
Df [mm]	7
Ds [mm]	5.7
feature	helical gear 19°31’42’’ hardened and ground
feature	through mounting holes
feature	on request, we provide full CNC machining according to drawing
H [mm]	19
L1 [mm]	125
L2 [mm]	939.4

Plewiska (20)

on stock

Attributes Substitutes (1)

1HR26R015100H/1 GAMBINI

Precision helical rack (quality class: 6, modul: 1,5)

Attributes

manufacturer	GAMBINI
dimensions	19 x 19 x 1000
Weight	2.499 kg
B [mm]	19
feature	helical gear 19°31’42’’ hardened and ground
feature	through mounting holes
feature	on request, we provide full CNC machining according to drawing
Dc [mm]	11
Df [mm]	7
Ds [mm]	5.7
H [mm]	19
number of teeth	200
quality class	6
L1 [mm]	125
L2 [mm]	939.4
material	SAE1141 (stronger than C45 steel)
modul	1.5
p - pitch [mm]	5
tooth hardness [HRC]	56÷60
type	precision helical rack
country of origin	Italy
