dimensions | 44.45 x 85 x 56.3 |
Weight | 0.84 kg |
C - outer ring width (insert bearing) [mm] | 22 |
cage | steel |
clearence | C3 - greater than normal |
country of origin | China |
Dynamic load rating [N] | 31850 |
d [mm] | 44.45 |
D [mm] | 85 |
inner ring width [mm] | 42.8 |
rounded outer ring | yes |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |
static load rating [N] | 20800 |

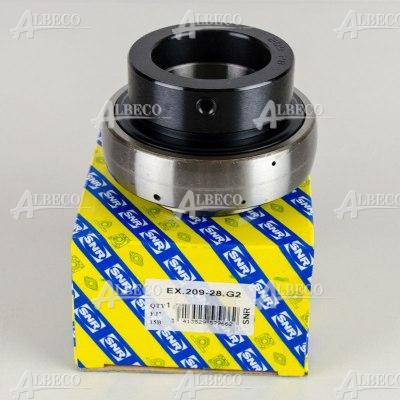

EX209-28G2 SNR
Insert ball bearing
manufacturer | SNR |
dimensions | 44.45 x 85 x 56.3 |
Weight | 0.84 kg |
inner ring width [mm] | 42.8 |
C - outer ring width (insert bearing) [mm] | 22 |
d [mm] | 44.45 |
D [mm] | 85 |
clearence | C3 - greater than normal |
T [mm] | 56.3 |
type | insert ball bearing |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |
rounded outer ring | yes |
Dynamic load rating [N] | 31850 |
static load rating [N] | 20800 |
cage | steel |
country of origin | China |
