You are here: EP 25 XH

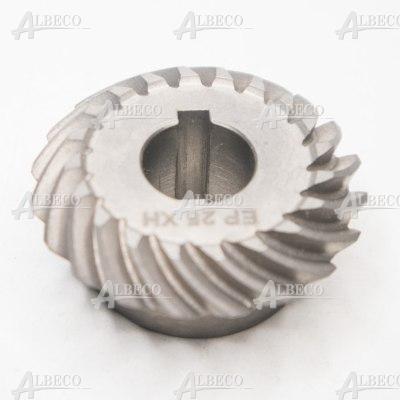

Koło stożkowe moduł 1,5 1:1 z=20, zęby łukowe, RH, HRC

Spiral bevel gears (modul: 1,5)

EP 25 XH

Name: EP 25 XH
Rating: 4.6 (7 reviews)

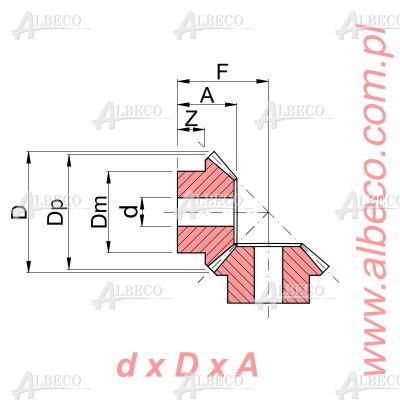

dimensions	17 x 52.12 x 21
Weight	0.18 kg
Dp - pitch diameter [mm]	52.12
d [mm]	17
F - height to the axis [mm]	40
feature	straight teeth, 20° preassure angle
feature	on request, we provide full CNC machining according to drawing
feature	with keyway bore
feature	with hub
gear ratio	1:1
material	carbon steel C45 / 1.0503 / AISI1045
modul	1.5
number of teeth	20

Attributes Substitutes (1)

EP 25 XH

Spiral bevel gears (modul: 1,5)

Attributes

manufacturer
dimensions	17 x 52.12 x 21
Weight	0.18 kg
feature	straight teeth, 20° preassure angle
feature	on request, we provide full CNC machining according to drawing
feature	with keyway bore
feature	with hub
d [mm]	17
Dp - pitch diameter [mm]	52.12
F - height to the axis [mm]	40
number of teeth	20
material	carbon steel C45 / 1.0503 / AISI1045
modul	1.5
tooth hardness [HRC]	40÷42
type	spiral bevel gears
gear ratio	1:1
