You are here: EP25X SKF

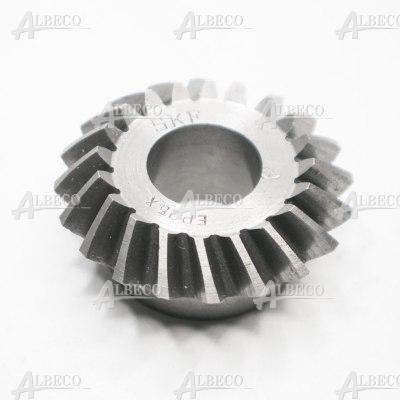

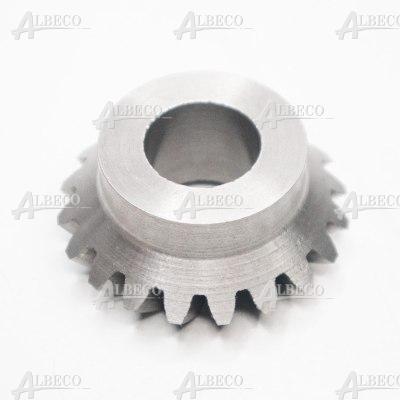

Koło stożkowe moduł 1,5 1:1 z=20, zęby łukowe, RH, HRC

Spiral bevel gears

EP25X SKF

Name: EP25X SKF
Rating: 4.9 (2 reviews)

dimensions	17 x 52.12 x 21
Weight	0.15 kg
Dp - pitch diameter [mm]	52.12
d [mm]	17
F - height to the axis [mm]	40
feature	with hub
feature	on request, we provide full CNC machining according to drawing
feature	with keyway bore
feature	straight teeth, 20° preassure angle
gear ratio	1:1
material	carbon steel C45 / 1.0503 / AISI1045
number of teeth	20
tooth hardness [HRC]	40÷42

Attributes Substitutes (1)

EP25X SKF

Spiral bevel gears

Attributes

manufacturer	SKF
dimensions	17 x 52.12 x 21
Weight	0.15 kg
feature	with hub
feature	on request, we provide full CNC machining according to drawing
feature	with keyway bore
feature	straight teeth, 20° preassure angle
d [mm]	17
Dp - pitch diameter [mm]	52.12
F - height to the axis [mm]	40
number of teeth	20
material	carbon steel C45 / 1.0503 / AISI1045
tooth hardness [HRC]	40÷42
type	spiral bevel gears
gear ratio	1:1
