dimensions | 31.75 x 85 x 36.5 |
Weight | 0.752 kg |
C - outer ring width (insert bearing) [mm] | 22 |
cage | polyamide |
clearence | C3 - greater than normal |
country of origin | Brazil |
dk [mm] | 31,75 +0,6 / +0,9 |
Dynamic load rating [N] | 34500 |
d [mm] | 31.75 |
D [mm] | 85 |
inner ring width [mm] | 36.5 |
rounded outer ring | yes |
sealing | triple lip seal covered with metal plate on both sides - suitable for heavily contaminated applications. Low rotation speeds. |

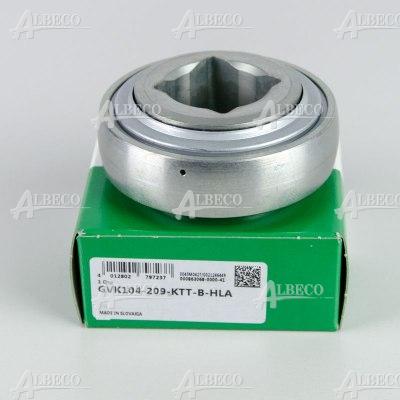

GVK104-209-KTT-B-HLA INA
Insert ball bearing with square hole
manufacturer | INA |
dimensions | 31.75 x 85 x 36.5 |
Weight | 0.752 kg |
inner ring width [mm] | 36.5 |
C - outer ring width (insert bearing) [mm] | 22 |
d [mm] | 31.75 |
D [mm] | 85 |
dk [mm] | 31,75 +0,6 / +0,9 |
clearence | C3 - greater than normal |
type | insert ball bearing with square hole |
sealing | triple lip seal covered with metal plate on both sides - suitable for heavily contaminated applications. Low rotation speeds. |
rounded outer ring | yes |
Dynamic load rating [N] | 34500 |
static load rating [N] | 20400 |
cage | polyamide |
country of origin | Brazil |
