You are here: Linear motion Linear guides and carriages Profile guides and carriages EGR35R /2994H, 44-70 HIWIN

Rail (operating temp.: -10÷80°C)

EGR35R /4000H HIWIN

Name: EGR35R /4000H HIWIN
Rating: 5 (9 reviews)

Plewiska (6)

on stock

Attributes Variants (2)

EGR35R /4000H HIWIN

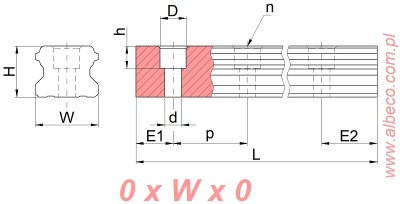

Rail (operating temp.: -10÷80°C)

manufacturer	HIWIN
dimensions	0 x 34 x 0
Weight	24.56 kg
d [mm]	9.0
D [mm]	14
h [mm]	12
H [mm]	27.5
number of raceways	4
material	induction hardened steel
p - pitch [mm]	80.0
rail size	35
screw (min. lenght)	ISO14580, M8x25-10.9
operating temp.	-10÷80°C
surface hardness	58+4HRC
type	rail
W [mm]	34
used with	EGH…CA, EGH…SA, QHE…CA, QHE…SA, EGW…SC, EGW…CC, QEW…CC, QEW…SC
precision	high accuracy
cap	C8
country of origin	Taiwan
