You are here: Telescopic slides Telescopic slides DB1432-0070-2 ACCURIDE

Telescopic slide, zinc plated, Pocket door sliding system (load/pair: 34kg, operating temp.: -20÷70°C)

DB1432-0070-2 ACCURIDE

Name: DB1432-0070-2 ACCURIDE
Rating: 4.9 (13 reviews)

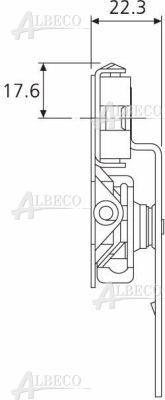

dimensions	0 x 22.3 x 710
Weight	1.575 kg
colour	black
country of origin	Mexico
door	maximum door dimensions; height 2300mm x width 710mm x thickness 16÷32mm
extension length [mm]	597
feature	inset and overlay door slide
flat mount	no
includes	set does not include: hinges and connecting strips
load/pair [kg]	34
lock / hold	hold in
material	black galvanized steel
operating temp.	-20÷70°C

Plewiska (4)

on stock

Details Attributes

DB1432-0070-2 ACCURIDE

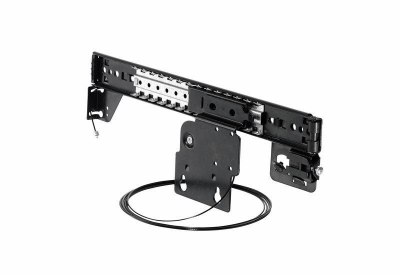

Telescopic slide, zinc plated, Pocket door sliding system (load/pair: 34kg, operating temp.: -20÷70°C)

Not suitable for flat mounting
has a synchronized cable system which eliminates the risk of racking an keeps the door straight and aligned, resulting in a quiet pocket door movement

Attributes

manufacturer	ACCURIDE
dimensions	0 x 22.3 x 710
Weight	1.575 kg
feature	inset and overlay door slide
slide length [mm]	700
extension length [mm]	597
colour	black
material	black galvanized steel
flat mount	no
load/pair [kg]	34
operating temp.	-20÷70°C
type	telescopic slide
includes	set does not include: hinges and connecting strips
lock / hold	hold in
door	maximum door dimensions; height 2300mm x width 710mm x thickness 16÷32mm
product feature	zinc plated
product feature	pocket door sliding system
country of origin	Mexico
