You are here: Bearings Ball bearings Angular contact ball bearings 7204 CD/P4ADGA SKF

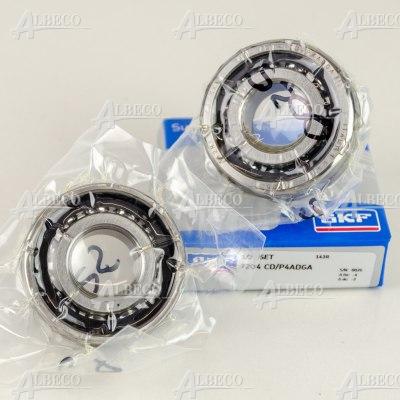

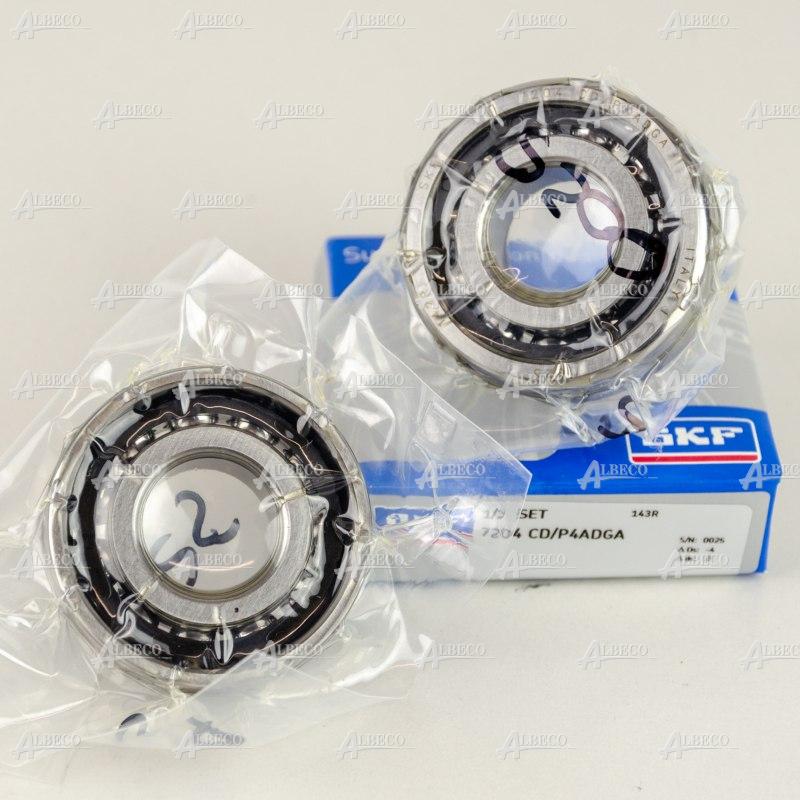

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

7204 CD/P4ADGA SKF

dimensions	20 x 47 x 14
Weight	0.113 kg
bearing arrangement	universal matching pair
cage	carbon fibre reinforced PEEK, outer ring centred
contact angle [°]	15
country of origin	Italy
Dynamic load rating [N]	19500
grease	none
precision	better than P4
preload	extra light preload
product feature	high precision ball bearings set, (two pcs)
rolling element material	big steel balls
sealing	none

Plewiska (2)

on stock

Log in to see the price

SKF

Attributes Substitutes (17)

7204 CD/P4ADGA SKF

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

Log in to see the price

manufacturer	SKF
dimensions	20 x 47 x 14
Weight	0.113 kg
grease	none
type	single row angular-contact ball bearing
sealing	none
product feature	high precision ball bearings set, (two pcs)
Dynamic load rating [N]	19500
static load rating [N]	11600
contact angle [°]	15
cage	carbon fibre reinforced PEEK, outer ring centred
preload	extra light preload
bearing arrangement	universal matching pair
precision	better than P4
country of origin	Italy
rolling element material	big steel balls

Technical materials

Product's substitutes

7204 CDGA/P4A SKF

7204 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 6 pcs

Log in to see prices

7204CG/GNP4 NTN

7204CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

7204CG1DUJ74 SNR

7204CG1DUJ74 SNR

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

7204 CYDU/GL P4 NACHI

7204 CYDU/GL P4 NACHI

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

7204 CYU/GL P4 NACHI

7204 CYU/GL P4 NACHI

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

B7204-C-2RSD-T-P4S-UL CSC

B7204-C-2RSD-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 4 pcs

Log in to see prices

B7204-C-2RSD-T-P4S-UL FAG

B7204-C-2RSD-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 2 pcs

Log in to see prices

B7204-C-T-P4S-DUL FAG

B7204-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

B7204-C-T-P4S-UL CSC

B7204-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 4 pcs

Log in to see prices

B7204-C-T-P4S-UL FAG

B7204-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 12 pcs

Log in to see prices

BNT 6204 C TAM HG DUL GMN

BNT 6204 C TAM HG DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

BNT 6204 C TAM HG UL GMN

BNT 6204 C TAM HG UL GMN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 6 pcs

Log in to see prices

CH7204CG1UJ74 SNR

CH7204CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

HCB7204-C-T-P4S-UL FAG

HCB7204-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 13 pcs

Log in to see prices

S6204 C TA P4+ DUL GMN

S6204 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

in stock

Plewiska: 3 pair

Log in to see prices

S6204 C TA P4+ UL GMN

S6204 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

S6204 C TXM P4+ DUL GMN

S6204 C TXM P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability
