You are here: Bearings Ball bearings Angular contact ball bearings HCB7204-C-T-P4S-UL FAG

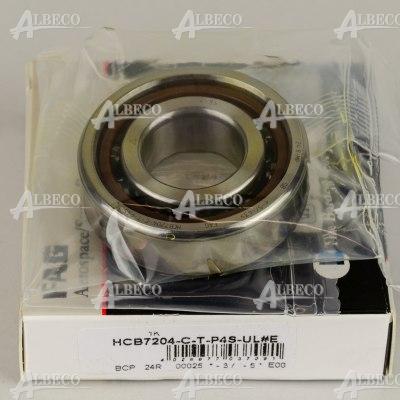

HCB7204-C-T-P4S-UL

HCB7204-C-T-P4S-UL

HCB7204-C-T-P4S-UL

HCB7204-C-T-P4S-UL

Single row angular-contact ball bearing, high precision bearing

HCB7204-C-T-P4S-UL FAG

dimensions	20 x 47 x 14
Weight	0.099 kg
bearing arrangement	for universal matching
cage	textolite, outer ring centred
contact angle [°]	15
country of origin	United Kingdom
Dynamic load rating [N]	17300
limiting/attainable speed, grease [rpm]	40000
limiting/attainable speed, oil [rpm]	60000
precision	better than P4
preload	light preload
product feature	high precision bearing
rolling element material	big ceramic balls

Plewiska (13)

on stock

Log in to see the price

FAG

Attributes Substitutes (17)

HCB7204-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

Log in to see the price

manufacturer	FAG
dimensions	20 x 47 x 14
Weight	0.099 kg
type	single row angular-contact ball bearing
sealing	none
product feature	high precision bearing
Dynamic load rating [N]	17300
static load rating [N]	7600
contact angle [°]	15
cage	textolite, outer ring centred
preload	light preload
bearing arrangement	for universal matching
precision	better than P4
country of origin	United Kingdom
limiting/attainable speed, oil [rpm]	60000
limiting/attainable speed, grease [rpm]	40000
rolling element material	big ceramic balls

Technical materials

Product's substitutes

7204 CD/P4ADGA SKF

7204 CD/P4ADGA SKF

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

in stock

Plewiska: 2 pair

Log in to see prices

7204 CDGA/P4A SKF

7204 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 6 pcs

Log in to see prices

7204CG/GNP4 NTN

7204CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

7204CG1DUJ74 SNR

7204CG1DUJ74 SNR

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

7204 CYDU/GL P4 NACHI

7204 CYDU/GL P4 NACHI

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

7204 CYU/GL P4 NACHI

7204 CYU/GL P4 NACHI

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

B7204-C-2RSD-T-P4S-UL CSC

B7204-C-2RSD-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 4 pcs

Log in to see prices

B7204-C-2RSD-T-P4S-UL FAG

B7204-C-2RSD-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 2 pcs

Log in to see prices

B7204-C-T-P4S-DUL FAG

B7204-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

B7204-C-T-P4S-UL CSC

B7204-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 4 pcs

Log in to see prices

B7204-C-T-P4S-UL FAG

B7204-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 12 pcs

Log in to see prices

BNT 6204 C TAM HG DUL GMN

BNT 6204 C TAM HG DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

BNT 6204 C TAM HG UL GMN

BNT 6204 C TAM HG UL GMN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 6 pcs

Log in to see prices

CH7204CG1UJ74 SNR

CH7204CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

S6204 C TA P4+ DUL GMN

S6204 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

in stock

Plewiska: 3 pair

Log in to see prices

S6204 C TA P4+ UL GMN

S6204 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

S6204 C TXM P4+ DUL GMN

S6204 C TXM P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability
