You are here: Bearings Ball bearings Angular contact ball bearings S6204 C TA P4+ UL GMN

S6204CTAABEC7UL

Single row angular-contact ball bearing, high precision bearing

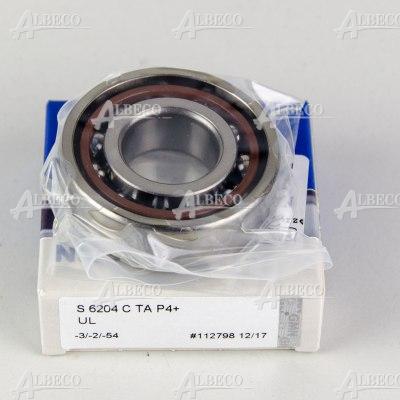

S6204 C TA P4+ UL GMN

dimensions	20 x 47 x 14
Weight	0.109 kg
bearing arrangement	for universal matching
cage	textolite, outer ring centred
contact angle [°]	15
country of origin
Dw - rolling element diameter [mm]	7.938
Dynamic load rating [N]	16900
limiting/attainable speed, grease [rpm]	38000
limiting/attainable speed, oil [rpm]	51000
precision	better than P4
preload	light preload
product feature	high precision bearing

GMN

Attributes Substitutes (17)

S6204 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

Log in to ask for price and availability

manufacturer	GMN
dimensions	20 x 47 x 14
Weight	0.109 kg
type	single row angular-contact ball bearing
product feature	high precision bearing
Dynamic load rating [N]	16900
static load rating [N]	10100
contact angle [°]	15
cage	textolite, outer ring centred
preload	light preload
bearing arrangement	for universal matching
precision	better than P4
Dw - rolling element diameter [mm]	7.938
country of origin
limiting/attainable speed, oil [rpm]	51000
limiting/attainable speed, grease [rpm]	38000
rolling element material	big steel balls
rings material	steel

Technical materials

leaflet

Product's substitutes

7204 CD/P4ADGA SKF

7204 CD/P4ADGA SKF

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

in stock

Plewiska: 2 pair

Log in to see prices

7204 CDGA/P4A SKF

7204 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 6 pcs

Log in to see prices

7204CG/GNP4 NTN

7204CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

7204CG1DUJ74 SNR

7204CG1DUJ74 SNR

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

7204 CYDU/GL P4 NACHI

7204 CYDU/GL P4 NACHI

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

7204 CYU/GL P4 NACHI

7204 CYU/GL P4 NACHI

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

B7204-C-2RSD-T-P4S-UL CSC

B7204-C-2RSD-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 4 pcs

Log in to see prices

B7204-C-2RSD-T-P4S-UL FAG

B7204-C-2RSD-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 2 pcs

Log in to see prices

B7204-C-T-P4S-DUL FAG

B7204-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

B7204-C-T-P4S-UL CSC

B7204-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 4 pcs

Log in to see prices

B7204-C-T-P4S-UL FAG

B7204-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 12 pcs

Log in to see prices

BNT 6204 C TAM HG DUL GMN

BNT 6204 C TAM HG DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability

BNT 6204 C TAM HG UL GMN

BNT 6204 C TAM HG UL GMN

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 6 pcs

Log in to see prices

CH7204CG1UJ74 SNR

CH7204CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

Log in to ask for price and availability

HCB7204-C-T-P4S-UL FAG

HCB7204-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 13 pcs

Log in to see prices

S6204 C TA P4+ DUL GMN

S6204 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

in stock

Plewiska: 3 pair

Log in to see prices

S6204 C TXM P4+ DUL GMN

S6204 C TXM P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

Log in to ask for price and availability
