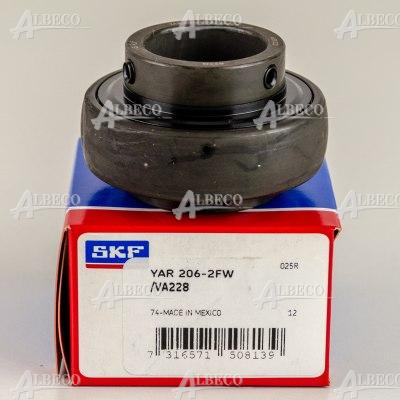

Name: YAR 206-2F/VA228 SKF
Rating: 5 (14 reviews)

YAR 206-2F/VA228 SKF

dimensions

30 x 62 x 38.1

Weight

0.31 kg

C - outer ring width (insert bearing) [mm]

cage

coronet cage made of graphite

clearence

C4 - greater than C3

country of origin

Dynamic load rating [N]

19500

d [mm]

D [mm]

grease

grease for the food a compliant with NSF-H1 recommendations

inner ring width [mm]

38.1

limiting speed [rpm]

190

operating temp.

max. 350°C

Attributes Substitutes (20)

YAR 206-2F/VA228 SKF

Insert ball bearing (operating temp.: max. 350°C)

manufacturer	SKF
dimensions	30 x 62 x 38.1
Weight	0.31 kg
inner ring width [mm]	38.1
C - outer ring width (insert bearing) [mm]	18
d [mm]	30
D [mm]	62
clearence	C4 - greater than C3
grease	grease for the food a compliant with NSF-H1 recommendations
operating temp.	max. 350°C
type	insert ball bearing
sealing	double-sided non-contact shields
rounded outer ring	yes
Dynamic load rating [N]	19500
static load rating [N]	11200
cage	coronet cage made of graphite
country of origin
limiting speed [rpm]	190

Technical materials

Product's substitutes

1030-30G RHP

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 16

30 x 62 x 38.1

1030-30GHLT RHP

Insert ball bearing (operating temp.: max. 180°C)

C - outer ring width (insert bearing) [mm]: 16

30 x 62 x 38.1

GYE30-XL-KRR-B INA

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 18

30 x 62 x 38.1

in stock

Plewiska: 123 pcs

Katowice: 10 pcs

Olsztyn: 10 pcs

1 day: 83 pcs

GYE30-KRR-B-FA107 INA

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 18

30 x 62 x 38.1

in stock

Plewiska: 5 pcs

PER.UC206-A PEER

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

UC206 ZKL

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

UC206 NEUTRAL

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

UC206 XLZ

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 18

30 x 62 x 38.1

in stock

Plewiska: 98 pcs

Olsztyn: 8 pcs

UC206S ZVL

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 4 pcs

Olsztyn: 12 pcs

1 week: 405 pcs

UC206 FAG

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 827 pcs

Katowice: 6 pcs

Olsztyn: 10 pcs

UC206AGR SNR

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 41 pcs

UC206D1 XLT

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

M-UC206D1 NTN

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 245 pcs

Katowice: 7 pcs

Olsztyn: 8 pcs

1 day: 2246 pcs

2 weeks: 40 pcs

UC206D1LLJ NTN

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

UC206 ENC 270°C BRL

Insert ball bearing (operating temp.: +270°C)

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 84 pcs

UC206G2 SNR

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 1909 pcs

Katowice: 23 pcs

Olsztyn: 17 pcs

1 day: 5272 pcs

2 weeks: 48 pcs

UC206G2L3 SNR

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 515 pcs

Olsztyn: 20 pcs

2 weeks: 44 pcs

UC206G2T20 SNR

Insert ball bearing (operating temp.: -20÷200°C)

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 450 pcs

1 day: 2 pcs

2 weeks: 48 pcs

UC206HT2D1 NTN

Insert ball bearing (operating temp.: max. 180°C)

C - outer ring width (insert bearing) [mm]: 19

30 x 62 x 38.1

in stock

Plewiska: 26 pcs

2 weeks: 37 pcs

YAR 206-2DW/AG SKF

Insert ball bearing

C - outer ring width (insert bearing) [mm]: 18

30 x 62 x 38.1

in stock

Plewiska: 49 pcs
