You are here: Power transmission Drive belts and pulleys Timing belts and pulleys HDB72-5M15 SIT

72 5M 15 (1610)

72 5M 15 (1610)

72 5M 15 (1610)

72 5M 15 (1610)

72 5M 15 (1610)

72 5M 15 (1610)

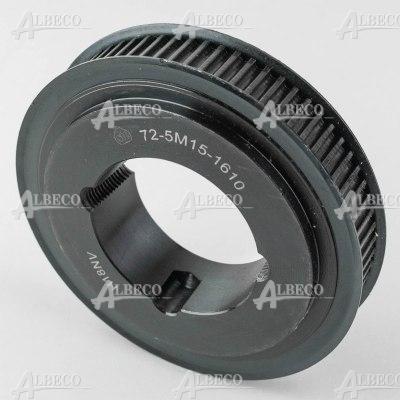

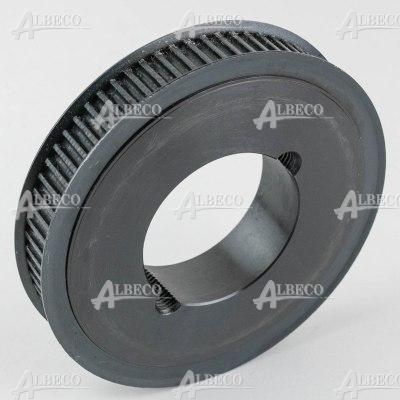

Pulley

HDB72-5M15 SIT

TL 72 5M 15 (1610) SIT PBH72-5M15 SIT

dimensions	0 x 113.45 x 20.5
Weight	1.32 kg
bo - belt width [mm]	15
country of origin	China
execution	2
E [mm]	119
feature	with hub
feature	pulley with flanges
feature	taper bushing mounting
H [mm]	92
material	carbon steel C45 / 1.0503 / AISI1045
number of teeth	72
profile	5M

Plewiska (8)

on stock

Log in to see the price

SIT

Attributes Substitutes (1)

HDB72-5M15 SIT

Pulley

Log in to see the price

manufacturer	SIT
dimensions	0 x 113.45 x 20.5
Weight	1.32 kg
bo - belt width [mm]	15
feature	with hub
feature	pulley with flanges
feature	taper bushing mounting
E [mm]	119
H [mm]	92
number of teeth	72
material	carbon steel C45 / 1.0503 / AISI1045
S [mm]	113.45
type	pulley
W [mm]	20.5
used with	Taper Lock 1610
Y [mm]	25
Z - depth [mm]	4.5
execution	2
profile	5M
R [mm]	114.59
country of origin	China

Technical materials

Product's substitutes

PHP 72-5M-15TB SKF

PHP 72-5M-15TB SKF

Pulley

0 x 0 x 0

Log in to ask for price and availability
