You are here: Power transmission Drive belts and pulleys Timing belts and pulleys PD22H200 SIT

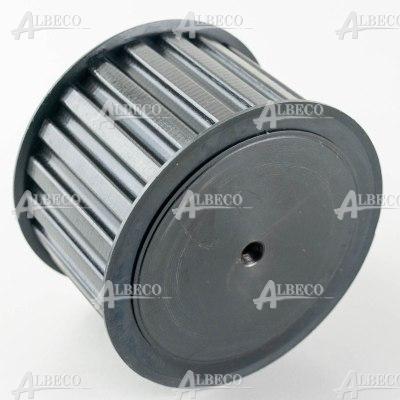

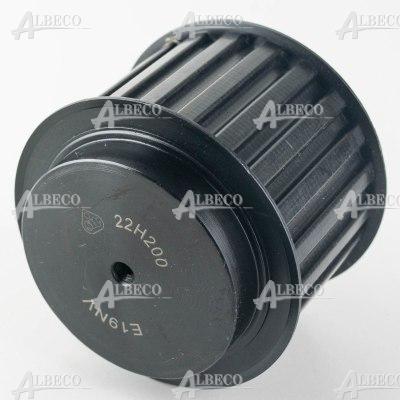

Pulley

PD22H200 SIT

Name: PD22H200 SIT
Rating: 4.7 (15 reviews)

22-H-200 SIT

dimensions	0 x 87.57 x 59.5
Weight	3.06 kg
bo - belt width [mm]	200 (2"=50,8 mm)
country of origin	China
execution	1
E [mm]	94
feature	with hub
feature	on request, we provide full CNC machining according to drawing
feature	pulley with flanges
feature	pulley with center holes
H [mm]	70
material	carbon steel C45 / 1.0503 / AISI1045
number of teeth	22

Plewiska (6)

on stock

Attributes Substitutes (1)

PD22H200 SIT

Pulley

manufacturer	SIT
dimensions	0 x 87.57 x 59.5
Weight	3.06 kg
bo - belt width [mm]	200 (2"=50,8 mm)
feature	with hub
feature	on request, we provide full CNC machining according to drawing
feature	pulley with flanges
feature	pulley with center holes
E [mm]	94
H [mm]	70
number of teeth	22
material	carbon steel C45 / 1.0503 / AISI1045
S [mm]	87.57
type	pulley
W [mm]	59.5
Y [mm]	72
Z - depth [mm]	12.5
execution	1
profile	H
R [mm]	88.94
country of origin	China
