You are here: Power transmission TKSA 71/PRO SKF

Alignment Tool

TKSA 71/PRO SKF

Weight 13.75 kg
application Horizontal shafts, vertical shafts, machine trains, spacer shafts, soft foot, values.
battery life Up to 8 hours.
country of origin
includes TKSA 51-ROD80 - Threaded extension rods 4x 80 mm
includes TKSA 51-ROD120 - Threaded extension rods 4x 120 mm
includes TKSA 51-EXT50 - Offset bracket 50 mm with 2x 80 mm threaded rods
includes TKSA 51-SLDBK - Sliding adj. bracket for shaft diam. > 30 mm or bore diam. >120 mm
includes TKSA 71-M - 1x TKSA 71 M Measuring Unit (including. calibration certificate)
includes TKSA 51-VBK - Standard bracket (1x) with 2x 80 mm threaded rod, 1x 480 mm chain, 4x magnets
includes TKSA 71-WPODS - 2x wireless charging pods for TKSA 71 and 71/PRO including. split USB cable
includes TKSA 51-EXTCH - Extension chains 2x 450 mm
Shipment possible on Monday, 05 May 2025.
Plewiska (1)

on stock

TKSA 71/PRO SKF

Alignment Tool

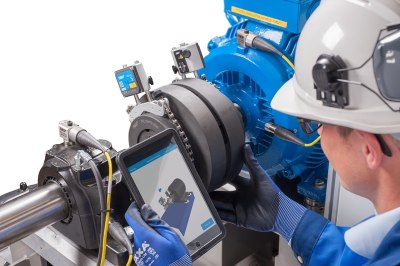

The SKF Shaft Alignment Tool TKSA 71 is designed for professional alignments in harsh industrial environments. The instrument offers a variety of features for alignment experts and demanding applications while the great app intuitiveness supports an easy usage and effective shaft alignments. The TKSA 71 is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its dedicated software applications allow convenient alignments of different types of applications, including horizontal and vertical shafts, spacer shafts and machine trains.
  • Intuitive usage - Intuitive software applications, guided alignment processes and explanatory videos help the operator to easily use the instrument and perform effective alignments.
  • Wide range of applications - Comprehensive accessories and dedicated software applications support a wide variety of shaft alignment applications.
  • Superior alignment performance - Up to 10 m measurement distance, disturbance compensation, full measurement flexibility, only 40° of shaft rotation needed, automatic measurement mode and customised alignments with target values - all supporting the needs of shaft alignment professionals.
  • Protection against harsh environments - Completely sealed measuring units (IP 67) to withstand dust and water in harsh industrial environments and outdoors.
  • Ultra-compact measuring units - The small built-size of the measuring units allow alignments in extremely narrow spaces where larger measuring units would not fit.
  • PRO-version - The comprehensive set of included accessories of the pro-version widens the range of supported alignment situations even further and prepares the user for challenging alignments.
  • Free apps and demonstration mode - All alignments apps are available for free in the app stores.
  • They feature a fully function demonstration mode and tutorial videos for performing alignments. Robust trolley case - Excellent case protection (IP 67), convenient transport with trolley case and wireless in-case charging.
manufacturer SKF
dimensions 0 x 0 x 0
Weight 13.75 kg
shaft diameter [mm] 20 to 150 mm, up to 450 mm with extension chains (included)
type alignment tool
used with TKSA 51-SPDBK - Spindle bracket and 2x 80 mm rods
application Horizontal shafts, vertical shafts, machine trains, spacer shafts, soft foot, values.
includes TKSA 51-ROD80 - Threaded extension rods 4x 80 mm
includes TKSA 51-ROD120 - Threaded extension rods 4x 120 mm
includes TKSA 51-EXT50 - Offset bracket 50 mm with 2x 80 mm threaded rods
includes TKSA 51-SLDBK - Sliding adj. bracket for shaft diam. > 30 mm or bore diam. >120 mm
includes TKSA 71-M - 1x TKSA 71 M Measuring Unit (including. calibration certificate)
includes TKSA 51-VBK - Standard bracket (1x) with 2x 80 mm threaded rod, 1x 480 mm chain, 4x magnets
includes TKSA 71-WPODS - 2x wireless charging pods for TKSA 71 and 71/PRO including. split USB cable
includes TKSA 51-EXTCH - Extension chains 2x 450 mm
includes TKSA MAGBASE - 2x Magnetic bases for use with offset brackets
includes TKSA 71-S - 1x TKSA 71 S Measuring Unit (including. calibration certificate)
includes TKSA 41-QR - 5x A5 sheets with 6x QR codes per sheet (total of 30x unique stickers)
battery life Up to 8 hours.
country of origin
